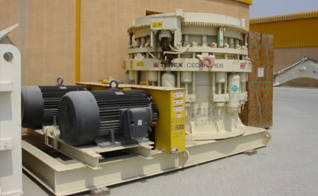

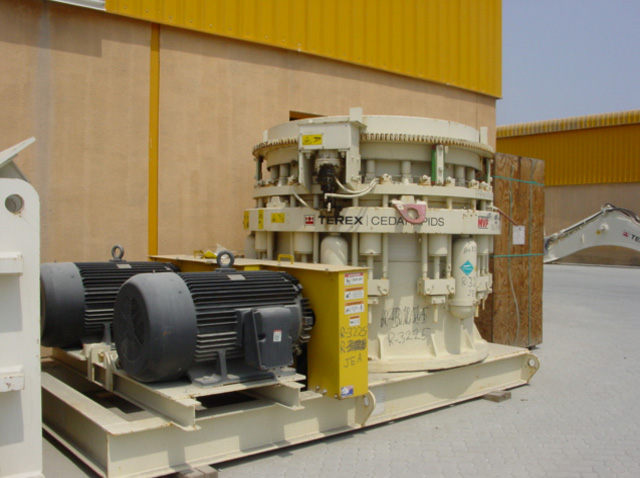

UNUSED TEREX CEDARAPIDS MVP 550 CONE CRUSHER

STANDARD BASE UNITS

:

V-belt driven sheave for crusher

Manual Hydraulic Adjustment System (Man-in-the loop) with control button son door. Can be mounted 15 feet from crusher.

Crusher set for clockwise input shaft rotation.

Lubracation oil flow safety switch and warning horn.

Hydraulic thread adjustment and locking standard equipment on all units.

Crusher mounted lubrication oil pump on all crushers. (460/3/60 or 380/3/50)

Oil heaters standard.

All units shipped with oil-filled sump.

Crusher hopper.

Crusher tools: Lifting eye, mantle wrench, clamp cylinder wrench.

Junction box.

Specified manganese liners installed and poured. For liner configurations, see liner hart.

Interchangeable between standard and fine chambers.

Heavy duty roller bearings standard on all units.

Heavy duty cast steel base frame with replaceable wear liners.

Non-ferrous thread inserts for wear resistance.

Export Preparation and Lift Kit.

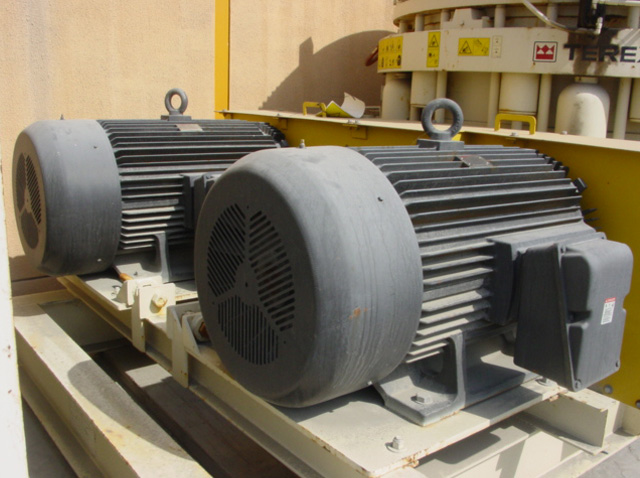

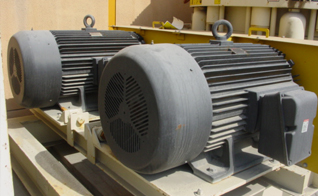

ELECTRIC MOTOR (Toshiba 380-3-50)

V-Belt Drive Motors for Electric Motor

:

MVP550 (2 X 250HP)

Includes V-belts

motor sheave

hub and key

Hopper Extensions

:

WIRE BASKET HOPPER EXTENSION

QTY

:

1 unit



AUTOMATIC HYDRAULIC ADJUSTMENT SYSTEM (PLC)

15 hp skid mounted hydraulic power unit for crusher adjustment and tramp iron relief system with cable/hose so skid can be mounted 15’ from crusher. Includes remote adjust panel on 200’ tether with indicator light, amp meter, position feed back indicator.

REMOTE PUSH BUTTON BOX ON TETHER (Manual Hydraulic System)

Replaces the push button on the door

  • With 50 feet tether …………… (900-10)
  • With 100 feet tether …………… (900-20)
  • With 150 feet tether …………… (900-30)
AUTOMATIC OIL CIRCULATION KIT FOR MANUAL HYDRAULIC SYSTEM

Automatically circulates oil at a predetermined interval to assist in cold weather start-up
